$1999-5999

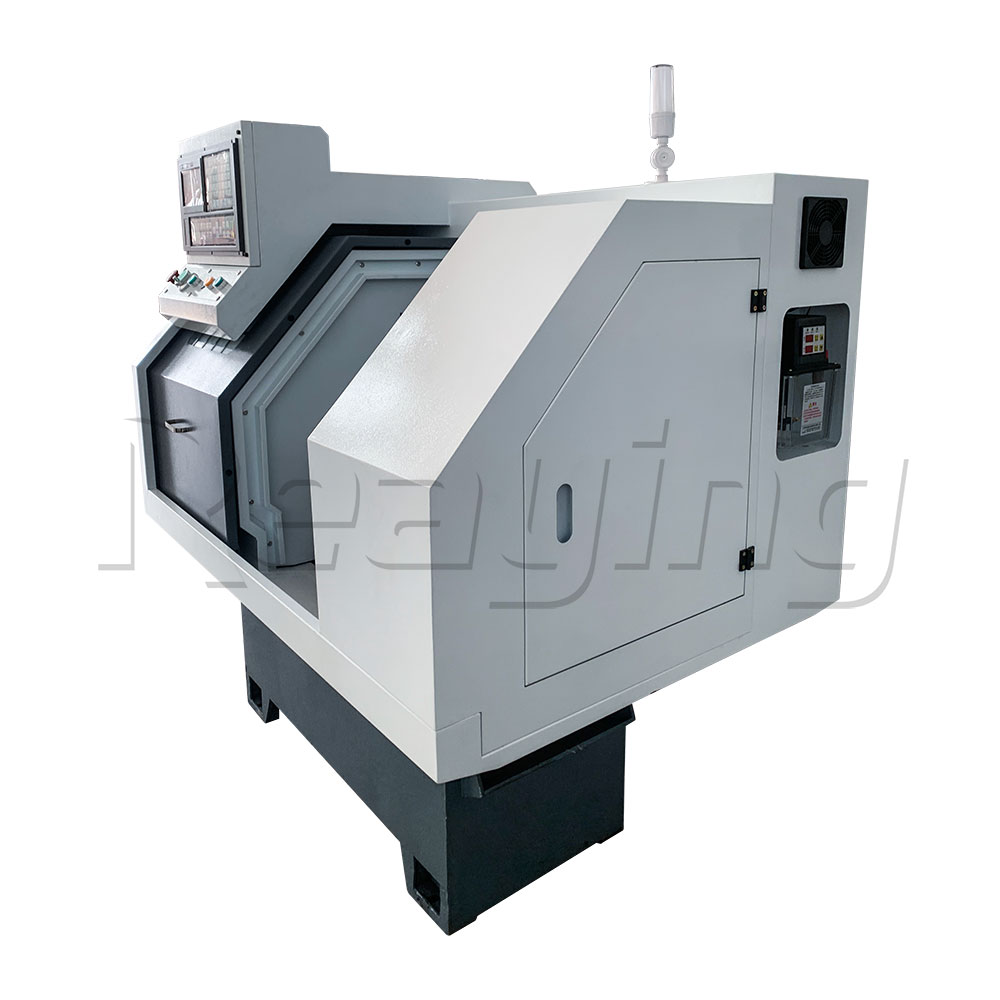

Machine bed width, bed rail structure is reasonable, bedside box using heat-type structure design, more effective to improve the stability of the machine tool and the stability of the spindle. Machine tool spindle bearings are used before and after the high precision ball bearings angular contact bearings, the work of good stability, load carrying capacity. The guide rail is casted by wear-resistant cast iron and quenched and refined by supersonic frequency to ensure long-term stable machining accuracy and service life.

If you need more details about a nifty little lifecycle of your order's journey from the time you place your order to your new treasures arriving at your doorstep, please contact us.

Details Show

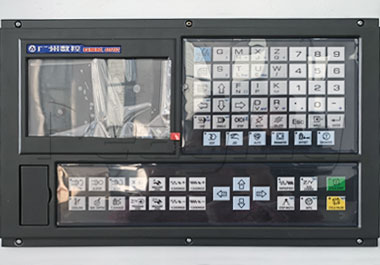

CNC controller

Standard GSK 928 Optional Siemens 808D

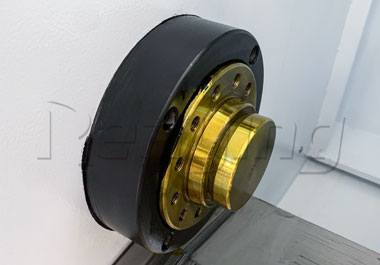

Chuck

Standard: Pneumatic collet The spindle comes with a waterproof door cover and using a pneumatic collet device. Optional: Manual 3 jaw chuck/pneumatic chuck/hydraulic chuck

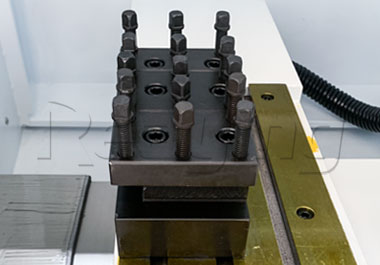

Tool post

Standard gang type tool post Optional: electric 4 station tool post

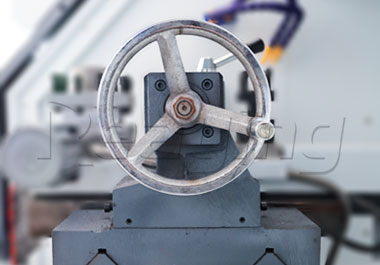

Tailstock

Standard: without tailstock Optional: manual tailstock+200usd

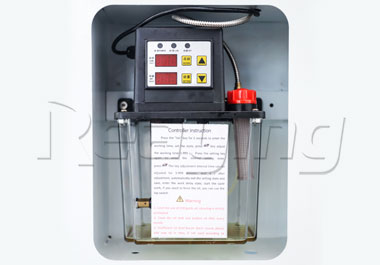

Automatic lubrication

Electric lubrication oil pump, can freely set and adjust lubrication interval time, as well as lubrication duration

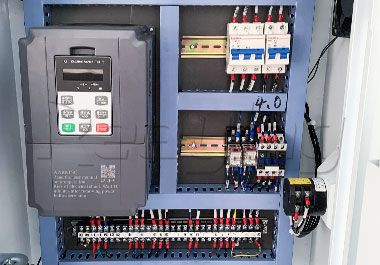

Electric parts

Delixi Schneider and other domestic famous brands of electrical components

Capability Max. Swing over bed mm Φ320
Max. Swing over cross slide mm Φ100
Maximum working length mm 350
Max length of work piece mm 350
Spindle Spindle bore mm Φ48
Spindle speed R/min 100-3000
X axis travel mm 600
Z axis travel mm 330
Clamping The clamping mode of the work piece / Pneumatic collet
Optional: Manual 3 jaw chuck/Pneumatic chuck/Hydraulic chuck
Chuck diameter mm 160
Power Main drive motor KW 4
Pump power motor w 90
Tool type Tool post / Row of knives
Optional: electric 4 station tool post
Tool dimension mm 20*20
Tailstock / Optional manual tailstock (+200usd)
Machine tool lubrication system / Fully automatic gear lubricating oil pump
Size Machine size mm 1600*1100*1600
Weight KG 1000
